MDDB18 Mega-Drop Down 18 inch Black
ALL BULBS will beat "ALL" competitors pricing! ….... Call 516.766.2266

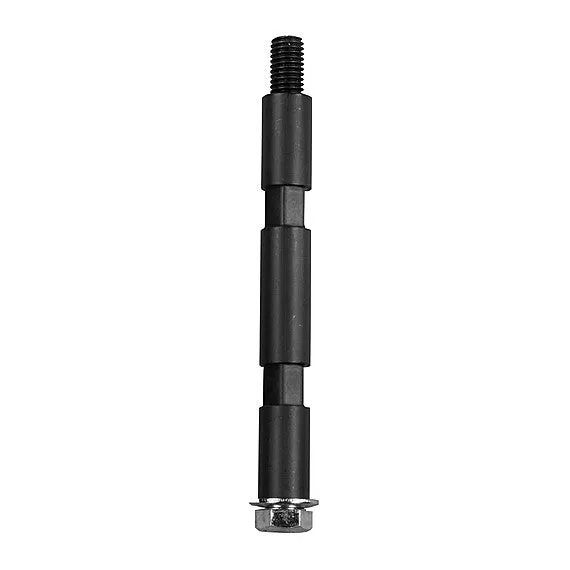

The Mega-Drop Down is a quick and inexpensive way to place a light fixture below the pipe or grid. It now has new wrench flats for easy adjustments.
The Mega-Drop Down is made from solid 3/4" diameter 6061 T-6 aircraft grade aluminum and is made in 6", 9", 12", 18" 24", and 36" lengths. The Mega-Drop Down has a 1/2-13 tpi x 2" steel stud to fasten into a Mega-Clamp, or similar clamp that has 1/2"-13 female threads. The lower end of the Mega-Drop Down has 1/2-13 female threads to bolt the light fixture’s yoke to the drop down with a 1/2-13 × 1″ grade 5 zinc plated bolt and Belleville washer. When assembling the Drop down to the Mega-Clamp, use Loctite Red or other permanent thread-locking compound to make the connection secure.
- Working Load Limit 600 Pounds
- Hardware
-
1/2-13 tpi x 2" Steel stud to fasten into a Mega-Clamp.
1/2"-13 × 1″ grade 5 hex head zinc plated cap screw w/ our HBW1 Belleville washer - Dimensions: 3/4" Diameter x 6"
- Weights: MDDB6 .39lbs, MDDB12 .66lbs, MDDB18 .92lbs, MDDB24 .97lbs, MDDB36 1.7lbs.
- Case Quantities each
Order Codes
The Mega-Drop Down is a quick and inexpensive way to place a light fixture below the pipe or grid. It now has new wrench flats for easy adjustments.
